Roofing products.

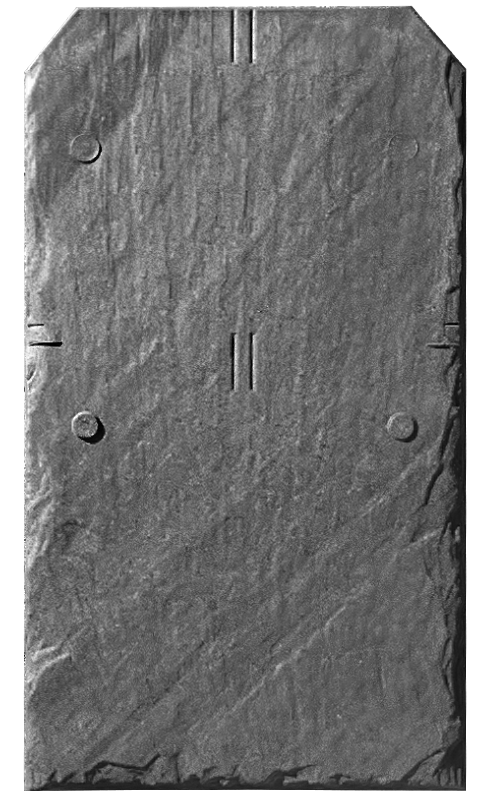

Polysand SyntheticSlate™ tile (more details)

Weight 1 pc.

2.2 lb (1 kg)

Polysand Synthetic Slate tile

Polysand Synthetic Slate tile

Size

12" x 22" (305 x 558 mm)

Thickness

1/2" (15 mm)

Headlap

3'' (75 mm)

1 square (100 sq.ft.)

125 tiles (9½" exposure)

1 square weight

275 lb (125 kg)

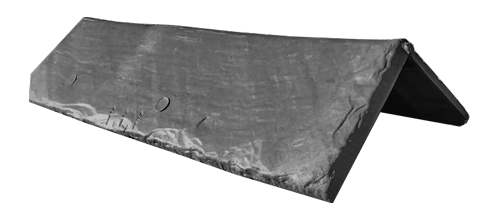

Polysand SyntheticSlate™ Cap

Weight 1 pc.

2.2 lb (1 kg)

Polysand Synthetic Slate tile



Size

6" each side x 22" long (305 x 558 mm)

Thickness

1/2" (15 mm)

Coverage per 1 cap

9½"

Quantaty per 100 ft.

130 pcs.


Polysand Synthetic Clay (Roman) tile (more details)

Weight 1 pc.

2.9 lb (1.3 kg)

Polysand Roman roofing Tile

Polysand Roman roofing Tile

Size

12 1/4'' x 15 3/8'' (310 x 390 mm)

Wave height

1 3/4'' (45 mm)

Headlap

from 2'' (50 mm)

Lock overlap

3/4'' (20 mm)

1 square (100 sq.ft.)

100 tiles (with 3'' headlap)

1 square weight

290 lb (130 kg)

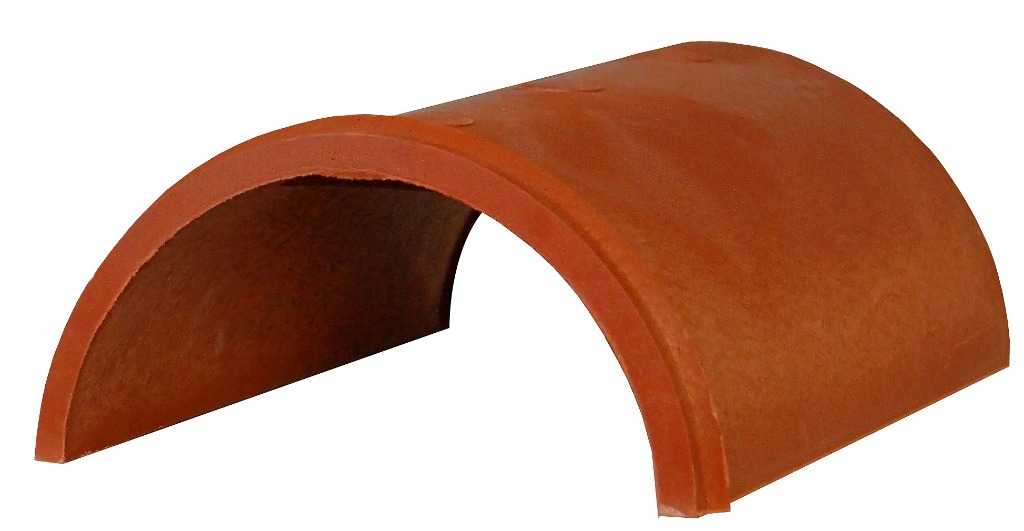

Ridge/Hip Cap for Synthetic Clay tile

Weight, 1pc.

2.5 lb (1.15 kg)

Polysand Ridge Cap

Polysand Ridge Cap

Size

12 1/4'' x 8 5/8''(310 x 220 mm)

Height, side A

4'' (102 mm)

Height, side B

4 1/4'' (107 mm)

Headlap

3/4'' (20 mm)

Quantaty per 10 ft.

~10 pcs.
